Welding machines can generally be divided into two types according to the output power source, one is AC power and the other is DC. They use the principle of inductance, the inductance will produce a huge voltage change when the inductance is turned on and off, and the high voltage arc generated when the positive and negative poles are short-circuited instantaneously is used to melt the solder on the electrode to achieve the purpose of atomic bonding.

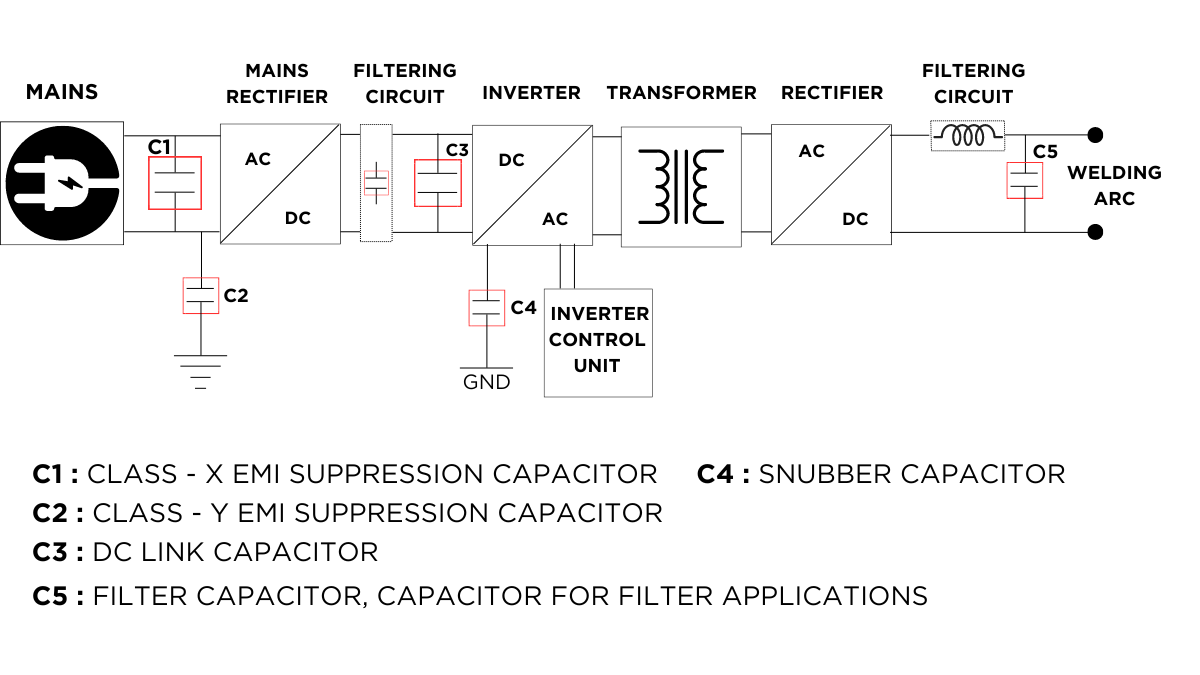

Capacitors which can be used for Welding machine application are listed below.
Deki Capacitor Range for Welding Machines Application
Series Name | Deki Series Code | Capacitance Range | Rated Voltage |
---|---|---|---|
Metallized Polypropylene IGBT Snubber DC Capacitor
|
121 |
0.047µF-5.6µF |
700Vdc-3000Vdc |
Metallized Polypropylene DC Link Capacitor
|
91 |
1µF to 210 µF |
450VDC - 1500VDC |
Interference Suppression DC Capacitor Class Y2
|
33 |
0.001µF to 1µF |
300VAC |
Interference Suppression DC Capacitor Class X2 (UL and ENEC Approved)
|
207 |
0.01µF to 10µF |
310VAC |
Metallized Polypropylene IGBT Snubber DC Capacitor (MPP-MPP TYPE)
|
150 |
1.5µF to 10µF |
700VDC-3000VDC |
Interference Suppression DC Capacitor Class X2- THB Grade (UL and ENEC Approved)
|
151 |
0.01µF to 10µF |
310VAC |
AC & Pulse Metallized Polypropylene DC Capacitor (MPP/MPP Series)
|
30 |
0.001µF to 0.15 µF |
1000 VDC - 2000 VDC |
Metallized Polypropylene DC Capacitor (MPP-Box Type)
|
27 |
0.001µF to 4.7µF |
63VDC-630VDC |
AC & Pulse Metallized Polypropylene DC Capacitor (PP-MMPP Dip Type)
|
05 |
0.0001µF to 0.15µF |
630VDC-2000VDC |
Interference Suppression Capacitors Class X1
|
19 |
0.0047µF to 1µF |
440VAC |
